Lecture #14: Acceleration structures

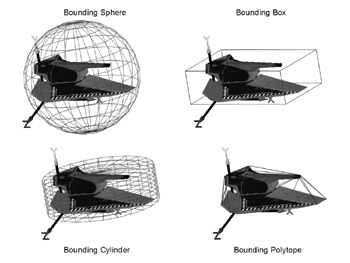

Bounding volume

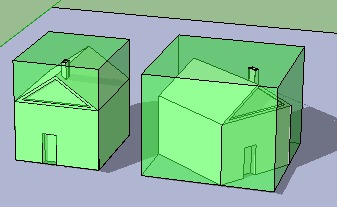

Axis-aligned bounding boxes

Box intersection algorithm

float3 invRaydir = float3(1.0) / ray.direction;
float3 t0 = (aabb_max - ray.position) * invRaydir;
float3 t1 = (aabb_min - ray.position) * invRaydir;
float3 tmin = min(t0, t1);
float3 tmax = max(t0, t1);
return maxelem(tmin) <= minelem(tmax);

[1]

“AABB” experiment

TODO

• Group traingles to objects
• Compute axis-aligned bounding boxes
• Change intersection flow to use AABBs

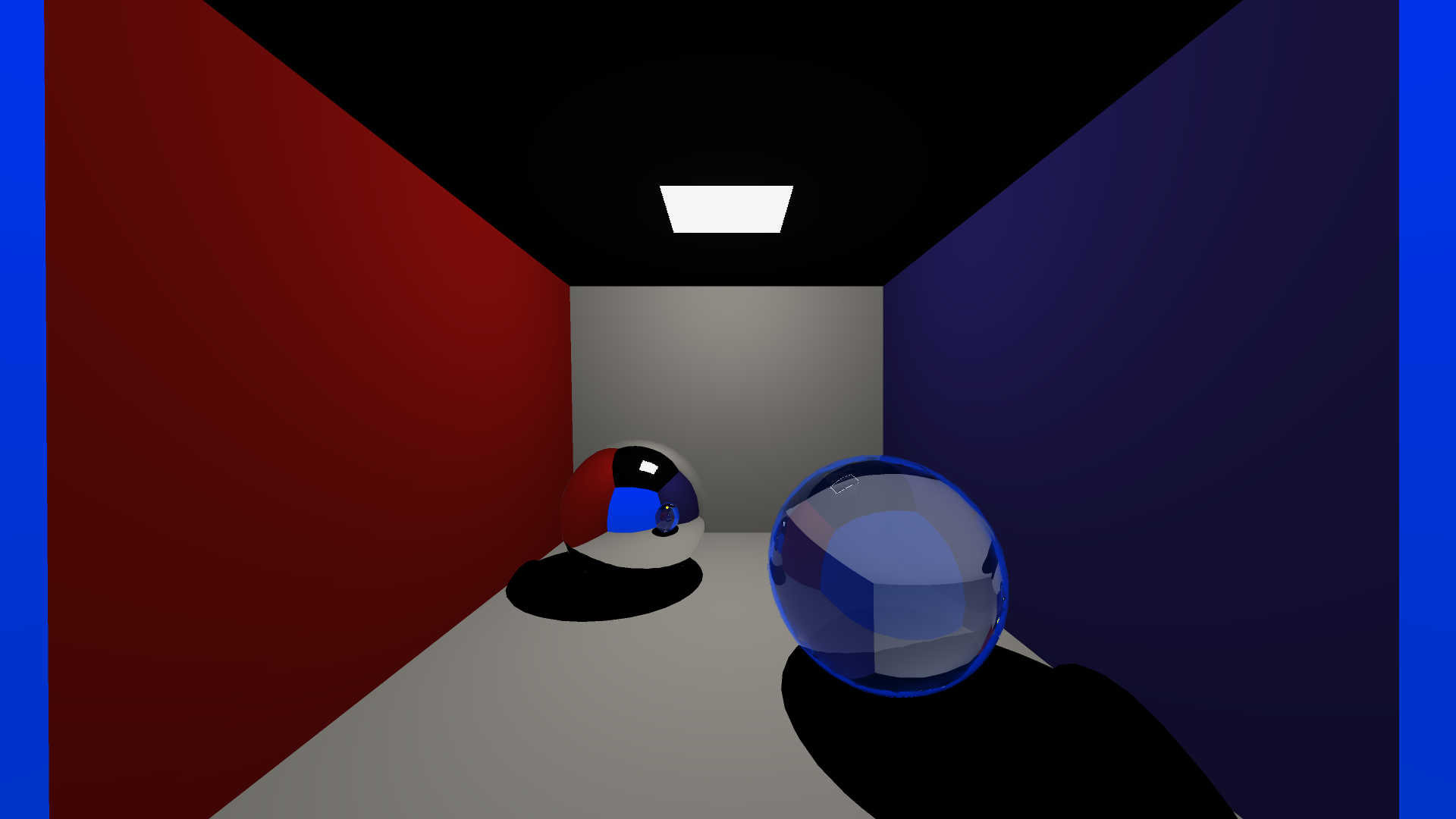

“AABB” experiment

Reference

“AABB” experiment

What is the new knowledge?

Traversing AABB before internal triangles gives a good speed up

Bounding volume hierarchy

• Top-level accelleration structures (TLAS)
• Bottom-level accellecration structures (BLAS)

“BVH” experiment

TODO

• Implement two-level AS
• Implement traversal of the BVH

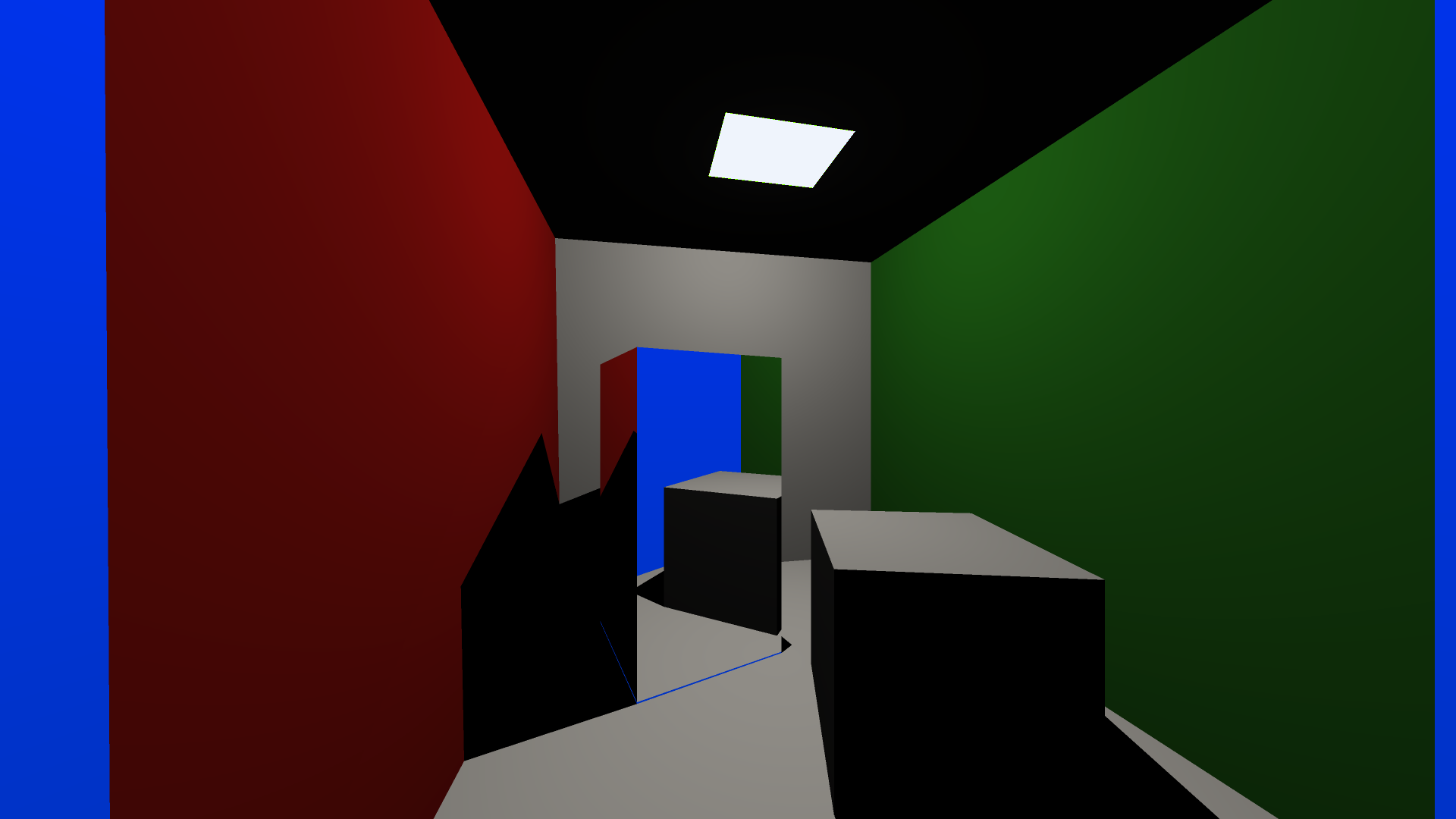

“BVH” experiment

Reference

“BVH” experiment

What is the new knowledge?

• BVH don’t speed up a Cornell box
