Lecture #9: Camera ray casting

Computer graphics in Game development

Ivan Belyavtsev

21.02.2020

Administrative

“Basics of rasterization” assignments

  • Waiting for submission of “Basics of rasterization” assignments
  • Official due date: Saturday, 22 February 2020, 12:00 AM
  • Feel free to ask questions via Telegram or person

Administrative

Basics of ray tracing

Administrative

Basics of ray tracing assignments (1 part)

  1. Ray generation
  2. Möller-Trumbore algorithm
  3. Lighting
  4. Shadow rays
  5. Reflection
  6. Refraction

Administrative

Basics of ray tracing assignments (2 part)

  1. Anti-aliasing
  2. Axis-aligned bounding box
  3. Bounding volume hierarchy
  4. (Optional) Denoising

Basics of rasterization recall

Idea

  1. Create a word as 3D polygons (triangles)
  2. Project the geometry to 2D plane
  3. Rasterize each peace of geometry

Basics of rasterization recall

Pros

  • Great math underlying
  • Low computational complexity
  • Clear flow

Basics of rasterization recall

Cons

  • Hard to compute lighting
  • Hard to compute shadows
  • Hell with blending and transparency

Ray tracing idea

From: [1]

Pinhole camera

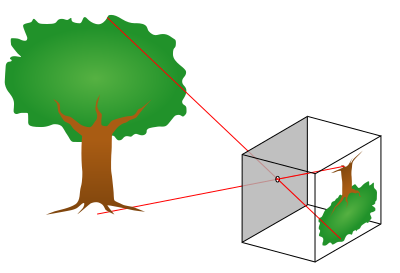

From: http://commons.wikimedia.org/wiki/Image:Pinhole-camera.png

Generation camera rays

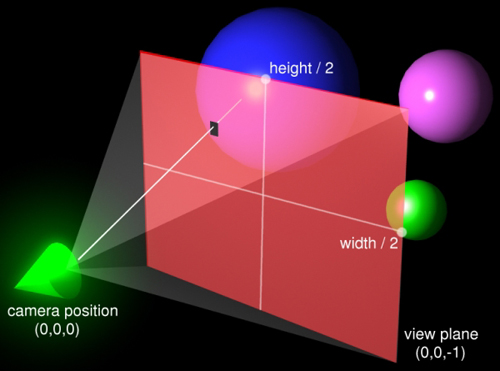

From: https://www.gamedev.net/forums/topic/587264-ray-generation-with-rotated-camera/ [2]

Ray tracing scheme

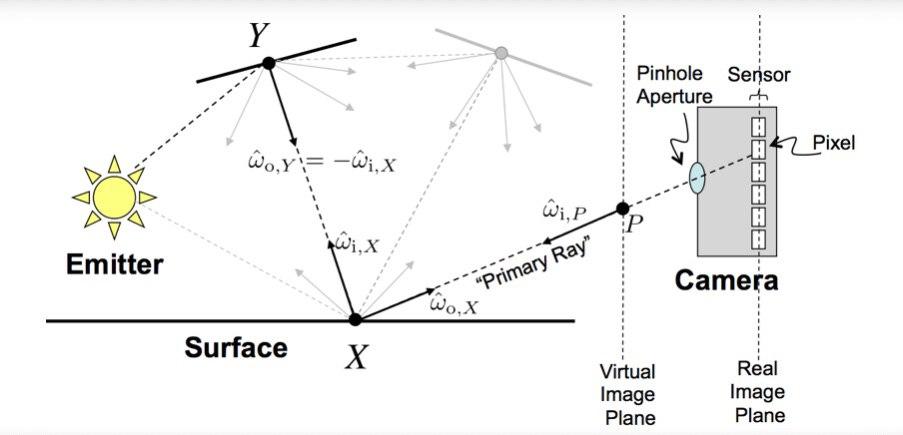

From: [3]

“Ray generation” experiment

TODO

  • Implement camera rays
  • Implement miss function

“Ray generation” experiment

Reference

From: https://github.com/djbelyak/rt-template/blob/master/references/ray_generation.png

“Ray generation” experiment

What is the new knowledge?

  • Primary ray color defines color of pixel
  • Primary rays make a camera frastrum
  • Miss function returns background color

References

1. McGuire M. The graphics codex. 2.14 ed. Casual Effects, 2018.

2. Shirley P. Ray tracing in one weekend. second. Amazon.com Services LLC, 2019. Vol. 1.

3. Lefrançois M.-K., Gautron P. DX12 raytracing tutorial - part 2 [Electronic resource]. URL: https://developer.nvidia.com/rtx/raytracing/dxr/DX12-Raytracing-tutorial-Part-2.
