Lecture 06: What is the ray tracing. Camera rays

Cornell box

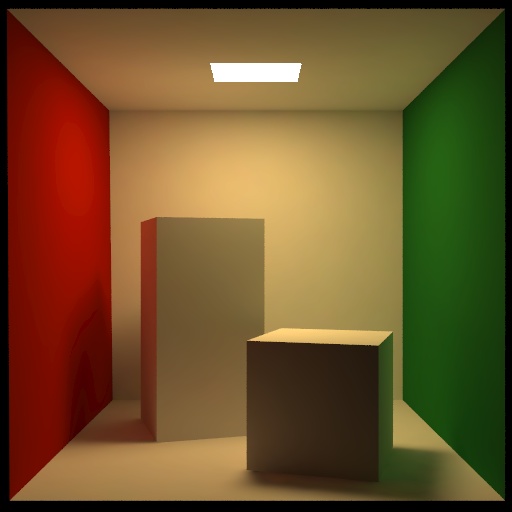

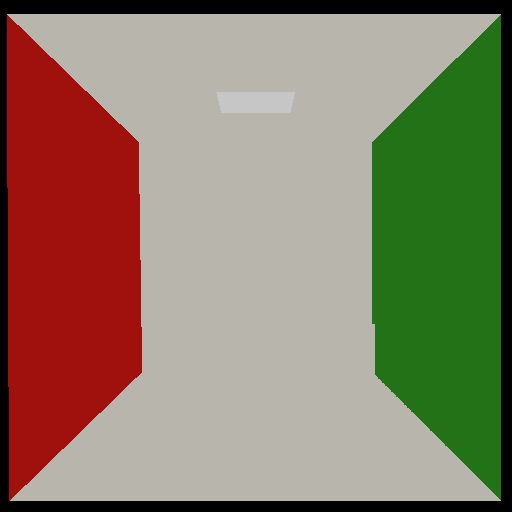

Original vs rasterizer

Original Rasterizer result

Wave–particle duality of light

From: https://me.me/i/light-s-olar-system-wave-particle-duality-intesifies-5a1956376a2d4ceab14afca19bae5409

Mathematical definition of ray

\[ray(t)=\vec{origin}+t*\hat{direction}\]

\[t>0\]

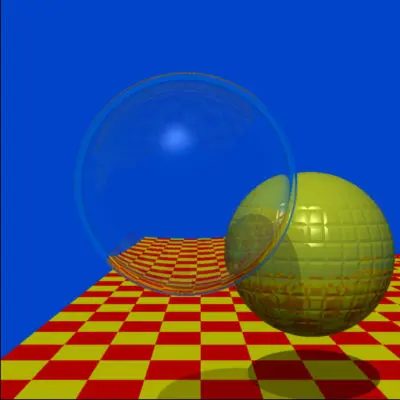

Turner Whitted demo (1979)

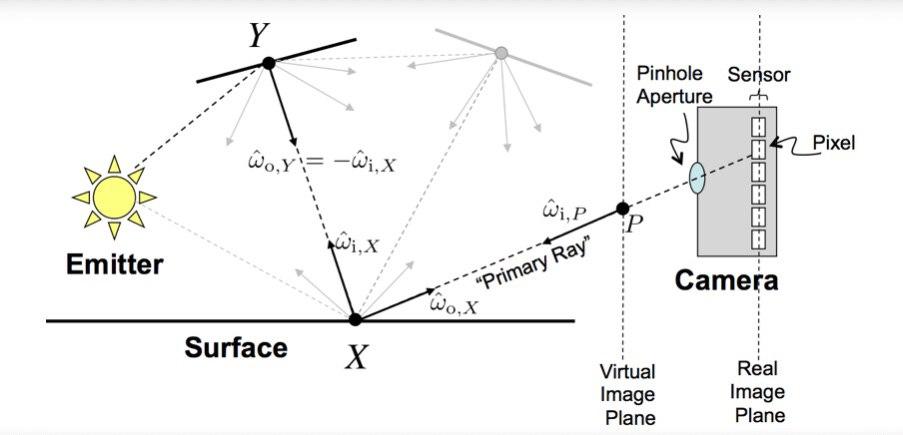

Ray tracing idea

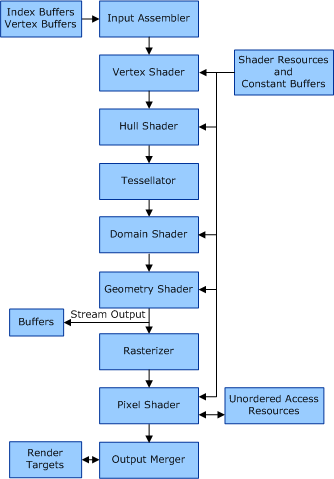

Recall: rasterization pipeline

From: https://docs.microsoft.com/en-us/windows-hardware/drivers/display/pipelines-for-direct3d-version-11

Raytracing pipeline

From: [3] [4]

Ray generation

Ray generation method generates primary rays (camera rays) and call Trace ray to evaluate the final color of each trace.

Dürer’s door

From: https://en.wikipedia.org/wiki/Ray_tracing_(graphics)#/media/File:D%C3%BCrer_-_Man_Drawing_a_Lute.jpg

by Albrecht Dürer from 1525 shows the use of a Dürer’s door

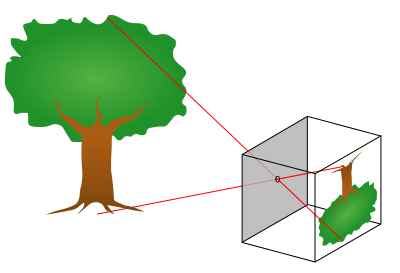

Pinehole camera

From: http://commons.wikimedia.org/wiki/Image:Pinhole-camera.png

Camera ray-casting

Ray casting from position, direction, right and up vectors

[5]

Miss shader

Miss shader is called when Trace ray haven’t found any intersection

From: [3] [4]

Default scene

Miss sharer is used to generate a scene without geometry. Could be pure color, sky, terrain, etc

by Morgan McGuire

Lab: Ray generation. Miss shader
