Lecture 04: Triangle rasterization

Computer graphics in Game development

Ivan Belyavtsev

24.10.2020

Rasterization

  • We have a wire frame image
  • Need to fill triangles by color

Edge function

Let’s take two points \((X, Y)\) and \((X+dx, Y=dy)\)

Define an edge function:

\[E(x, y) = (x - X)dy - (y - Y)dx\]

[1]

Edge function values

If \(E(x, y)>0\) then \((x, y)\) on the “right” side

If \(E(x, y)<0\) then \((x, y)\) on the “left” side

If \(E(x, y)=0\) then \((x, y)\) on the edge

[1]

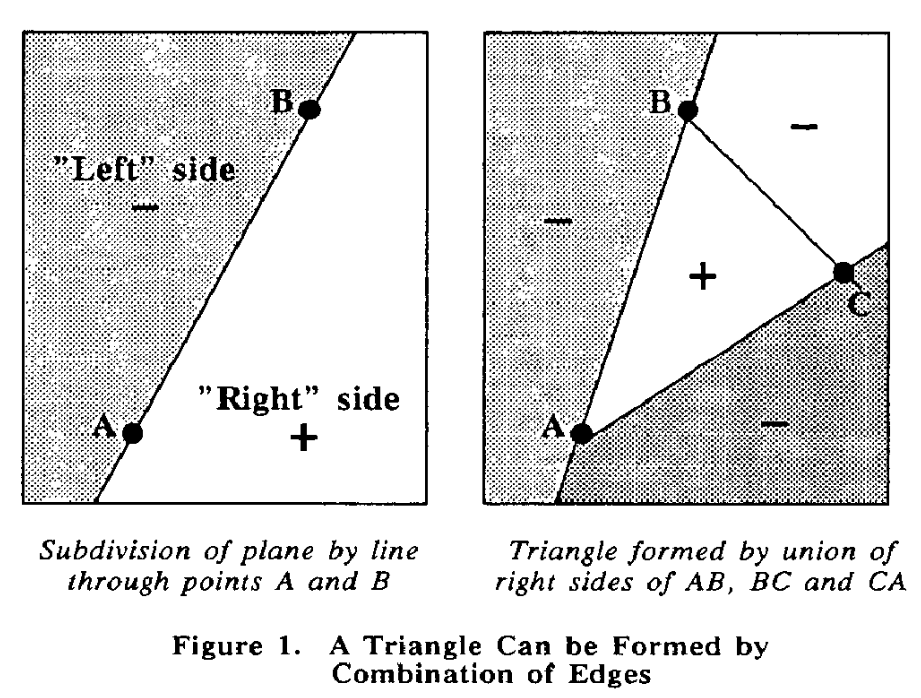

Edge function view

From: https://www.cs.drexel.edu/~david/Classes/Papers/comp175-06-pineda.pdf [1]

Clockwise vs counter-clockwise

From: https://www.scratchapixel.com/lessons/3d-basic-rendering/rasterization-practical-implementation/rasterization-stage [2]

“Edge function rasterization” experiment

Deduction phase

  • We have a correct wire frame triangles
  • We know about the edge function
  • How to fill triangles by solid color?
  • What about performance?

“Edge function rasterization” experiment

Experiment

Let’s implement it together

“Edge function rasterization” experiment

Reference

From: https://github.com/djbelyak/basic-of-rasterization/blob/main/references/triangle_rasterization.png

“Edge function rasterization” experiment

What is the new knowledge?

  • Edge function rasterization is good to fill triangles by solid color
  • Clockwise vertex order is required

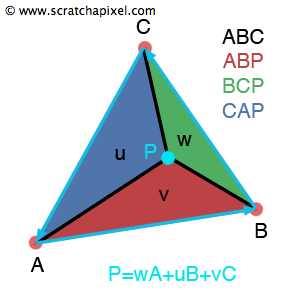

Barycentric coordinates

Let exists \[P=uA+vB+wC\], where \(u+v+w=1\)

From: https://www.scratchapixel.com/lessons/3d-basic-rendering/ray-tracing-rendering-a-triangle/barycentric-coordinates [3]

2D cross product cheating

\[(u_1, u_2, 0) \times (v_1, v_2, 0) = (0, 0, u_1v_1-u_2v_1)\]

and compare with

\[E(x, y) = (x - X)dy - (y - Y)dx\]

“Barycentric flavor rasterization” experiment

Deduction phase

  • We have a correct wire frame triangles
  • We know about the edge function
  • We know how to fill with solid color
  • How to fill triangles by interpoladed color?
  • What about performance?

“Barycentric flavor rasterization” experiment

Experiment

Let’s implement it together

“Barycentric flavor rasterization” experiment

Reference

From: https://github.com/djbelyak/basic-of-rasterization/blob/main/references/triangle_rasterization.png

“Barycentric flavor rasterization” experiment

What is the new knowledge?

  • Barycentric flavor rasterization is good if you need interpolate something during rasterization
  • Clockwise vertex order is required

References

1.
Pineda J. A parallel algorithm for polygon rasterization // Proceedings of the 15th annual conference on computer graphics and interactive techniques. 1988. P. 17–20.
2.
Rasterization: A practical implementation [Electronic resource]. 2015. URL: https://www.scratchapixel.com/lessons/3d-basic-rendering/rasterization-practical-implementation/rasterization-stage.
3.
